PRODUCT INTRODUCTION
The MDAJ-TCB-CEIA CMD is a high-performance compact metal detector designed for precise detection and positioning of various metal objects in complex terrains. Utilizing advanced acoustic modulation technology and an intuitive LED indicator system, it provides real-time guidance to locate metal targets accurately. This device excels in both professional applications and demanding conditions, meeting stringent requirements across diverse fields.
Adaptive Sensitivity Adjustment
The device can be precisely calibrated over a wide range to detect even minuscule metal components, especially critical for explosive material detection.
Integrated Foldable Design
Features modern control unit technology with lightweight construction, folding mechanism, and telescopic pole for ease of handling and storage.
Extreme Environment Operation
With IP68 waterproof rating, the detector withstands harsh freezing conditions while rejecting external interference to ensure accurate detection.、
| PERFORMANCE INDEX | |
| Alert System | Adjustable sensitivity with audible/visual indicators (coverable by clip lid) |

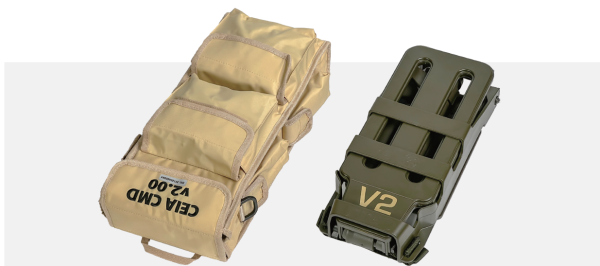

| Dimensions | Search head: 350mm×140mm Folded: 387mm×157mm×76mm Fully extended: 1290mm Carrying case: 395mm×200mm×110mm |
| Weight | Device without batteries: 1.98kg Device with batteries: 2.1kg Carrying case: 540g Headphones: 170g |
| Power Supply | Battery type (2x): ANSI C size – 1.2V NiMH rechargeable – 1.5V Alkaline (LR14) Battery life: Default mode at 20°C Charging indicator available |
| Operating Temp | -46℃ to +70℃ |
| Storage Temp | -55℃ to +85℃ |
| IP Rating | IP68 (IEC 529) Carrying case: Waterproof synthetic canvas |
| Deployment Time | 20 seconds typical (with batteries installed) |
| Included Charger | 12/24V DC power box with vehicle cigar plug 90-260V~ AC adapter |
