Product Highlights
High-Frequency Precision Jamming
Specifically optimized for the 758~788MHz band, providing precise and efficient signal jamming capabilities, suitable for various professional application scenarios.
High-Efficiency Design
Operating efficiency ≥40%, maximum operating current 3.2A (DC24-29V), achieving excellent energy consumption control and heat dissipation performance in a compact structure.
High-Stability Output
Provides 30W stable output power, output VSWR ≤2.0, ensuring stable jamming effects within the specified frequency band.
Product Images

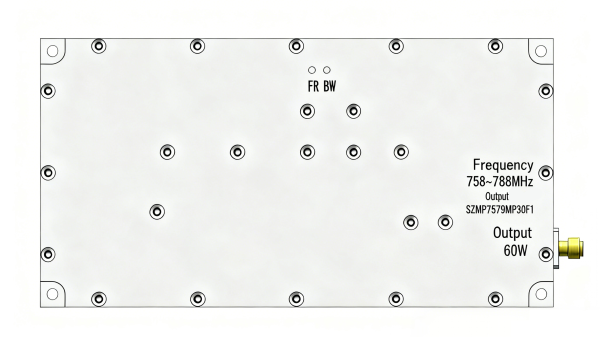

Product Appearance Image (Dimensions: 115.5×46.5×21mm)
Product Application Scenario Diagram
* Product appearance and application illustrations. Actual product may vary.
Detailed Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SZMP7579MP30F1 |
| Operating Frequency Range | 758 ~ 788MHz |
| Rated Output Power | 30W |
| Output VSWR | ≤ 2.0 |
| Operating Voltage Range | DC 24V ~ 29V |
| Maximum Operating Current | 3.2A (@26.5V) |
| Operating Efficiency | ≥ 40% |
| Switch Control Method | +5V or Floating: ON / Ground (GND): OFF |
| RF Output Interface | SMA Female |
| Jamming Signal Type | Built-in High-Speed Sweeping Source |
| Dimensions (L×W×H) | 115.5 × 46.5 × 21.0 mm |
| Weight | 0.21 kg |
Core Features
High-Frequency Precision Jamming
Specifically optimized for the 758~788MHz band, providing precise and efficient signal jamming capabilities.
High-Efficiency Design
≥40% operating efficiency, maximum operating current only 3.2A, enabling low energy consumption and high performance operation.
Efficient Heat Dissipation Design
Advanced thermal structure design ensures stability and reliability during prolonged high-load operation.
Intelligent Control Interface
Supports TTL level (+5V) and Ground (GND) control modes, facilitating system integration and remote management.
Built-in Sweeping Source
Integrated high-speed frequency scanning function, quickly covering the entire operating band for significant jamming effects.
Ultra-Compact Design
Ultra-small size of 115.5×46.5×21mm, weight only 0.21kg, easy to integrate into various devices.
Application Areas
- Professional Communication Shielding Systems
- Security Protection & Secure Communication
- Mobile Communication Signal Management
- Wireless Network Signal Control
- Wireless Eavesdropping Device Protection
- Wireless Management for Sensitive Locations
- Radio Monitoring & Control
Technical Highlights Summary
The SZMP7579MP30F1 module provides 30W stable output power in the 758~788MHz frequency band, featuring high operating efficiency ≥40% and excellent heat dissipation performance. Efficient jamming is achieved through a built-in high-speed sweeping source. Its ultra-compact design (115.5×46.5×21mm) and weight of only 0.21kg make it an ideal choice for professional communication jamming applications. Supports +5V TTL level or Floating/Ground control, facilitating system integration and remote management.
