2300~2500MHz 30W Professional Jamming Module
High-Performance Wi-Fi Band Communication Jamming Solution
The SZMP2325HP30F1 is a specialized jamming module engineered for the 2300~2500MHz frequency band, covering key Wi-Fi and ISM applications. Utilizing advanced RF technology and a built-in high-speed sweeping source, it effectively disrupts various wireless signals within this range. With 30W output power and ≥40% operating efficiency in a compact 115.5×46.5×21mm form factor, this module delivers professional-grade performance for modern communication interference applications.
Model: SZMP2325HP30F1
Detailed Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | SZMP2325HP30F1 |
| Operating Frequency Range | 2300 ~ 2500MHz |
| Rated Output Power | 30W |
| Output VSWR | ≤ 2.0 |
| Operating Voltage Range | DC 24V ~ 29V |
| Maximum Operating Current | 3.2A |
| Operating Efficiency | ≥ 40% |
| Switch Control Method | +5V or Floating: ON / Ground: OFF |
| RF Output Interface | SMA Female |
| Jamming Signal Type | Built-in High-Speed Sweeping Source |
| Dimensions | 115.5 × 46.5 × 21.0 mm |
| Weight | 0.21 kg |

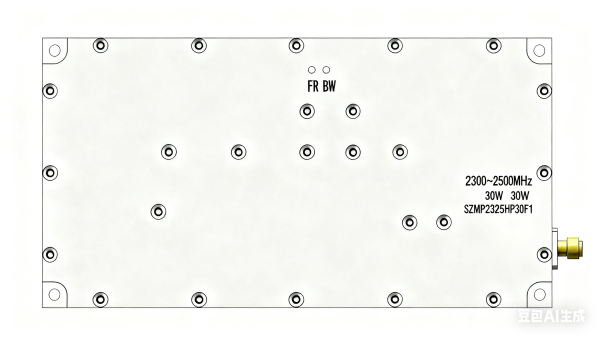

2300~2500MHz 30W Professional Jamming Module
Core Features
Wi-Fi Band Precision Jamming
Specifically optimized for 2300~2500MHz frequencies, targeting Wi-Fi (802.11b/g/n), Bluetooth, and ISM band devices.
High-Efficiency Operation
≥40% operating efficiency with maximum current of 3.2A, ensuring optimal power utilization and thermal management.
Stable High-Power Output
Consistent 30W output with VSWR ≤2.0 maintains effective jamming across the entire operating band.
Advanced Thermal Design
Engineered heat dissipation system ensures reliable performance during extended high-power operation.
Intelligent Control Interface
TTL level (+5V) and Ground control modes enable flexible integration and remote system management.
Integrated Frequency Sweeping
Built-in high-speed scanning rapidly covers the 2300~2500MHz band for comprehensive signal disruption.
Application Areas
Wi-Fi Network Management
Wireless Security Systems
Bluetooth Device Control
ISM Band Signal Disruption
Secure Facility Protection
Wireless Device Restriction Zones
Industrial Wireless Control
Technical Highlights Summary
The SZMP2325HP30F1 module delivers 30W stable output power across the 2300~2500MHz Wi-Fi/ISM band, featuring ≥40% operating efficiency and advanced thermal management. Its integrated high-speed sweeping source ensures comprehensive coverage of Wi-Fi frequencies, while the ultra-compact design (115.5×46.5×21mm, 0.21kg) enables versatile deployment in professional jamming systems. The module supports flexible +5V TTL or Floating/Ground control for seamless integration.
