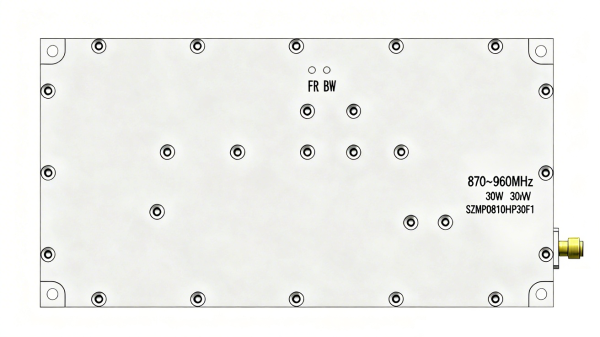

870~960MHz 30W Professional Jamming Module SZMP0810HP30F1

High-Performance UHF Band Communication Jamming Solution

The SZMP0810HP30F1 is a high-performance jamming module specifically designed for the 870~960MHz frequency band. It utilizes advanced RF technology and a built-in high-speed sweeping source to effectively block various wireless communication signals within this band. The module features 30W output power and ≥40% operating efficiency, achieving exceptional jamming performance in a compact structural design, making it an ideal choice for building professional-grade communication jamming systems.

Model: SZMP0810HP30F1

Detailed Technical Specifications

Parameter	Specification
Product Model	SZMP0810HP30F1
Operating Frequency Range	870 ~ 960MHz
Rated Output Power	30W
Output VSWR	≤ 2.0
Operating Voltage Range	DC 24V ~ 29V
Maximum Operating Current	3.2A
Operating Efficiency	≥ 40%
Switch Control Method	+5V or Floating: ON / Ground: OFF
RF Output Interface	SMA Female
Jamming Signal Type	Built-in High-Speed Sweeping Source
Dimensions	115.5 × 46.5 × 21.0 mm
Weight	0.21 kg

Core Features

High-Frequency Precision Jamming

Specifically optimized for the 870~960MHz band, providing precise and efficient signal jamming capabilities, suitable for various professional application scenarios.

High-Efficiency Design

Operating efficiency ≥40%, maximum operating current only 3.2A, achieving excellent energy consumption control and heat dissipation performance in a compact structure.

High-Stability Output

Provides 30W stable output power, output VSWR ≤2.0, ensuring stable jamming effects within the specified frequency band.

Efficient Heat Dissipation Design

Advanced thermal structure design ensures stability and reliability during prolonged high-load operation.

Intelligent Control Interface

Supports TTL level (+5V) and Ground control modes, facilitating system integration and remote management.

Built-in Sweeping Source

Integrated high-speed frequency scanning function, quickly covering the entire operating band for significant jamming effects.

Application Areas

Professional Communication Shielding Systems

Security Protection & Secure Communication

Mobile Communication Signal Management

Wireless Network Signal Control

Wireless Eavesdropping Device Protection

Wireless Management for Sensitive Locations

Radio Monitoring & Control

Technical Highlights Summary

The SZMP0810HP30F1 module provides 30W stable output power in the 870~960MHz frequency band, featuring high operating efficiency ≥40% and excellent heat dissipation performance. Efficient jamming is achieved through a built-in high-speed sweeping source. Its ultra-compact design (115.5×46.5×21mm) and weight of only 0.21kg make it an ideal choice for professional communication jamming applications. Supports +5V TTL level or Floating/Ground control, facilitating system integration and remote management.
