Military-Grade High-Efficiency VHF Band Communication Jamming Solution
The SZMP1218MP60F1 is a high-performance jamming module specifically designed for the 135~175MHz frequency band. Utilizing advanced RF technology and a built-in high-speed sweep source, it effectively blocks various wireless communication signals within this band. With 60W output power and ≥40% operating efficiency, this compact module delivers exceptional jamming performance, making it an ideal choice for building professional communication jamming systems.

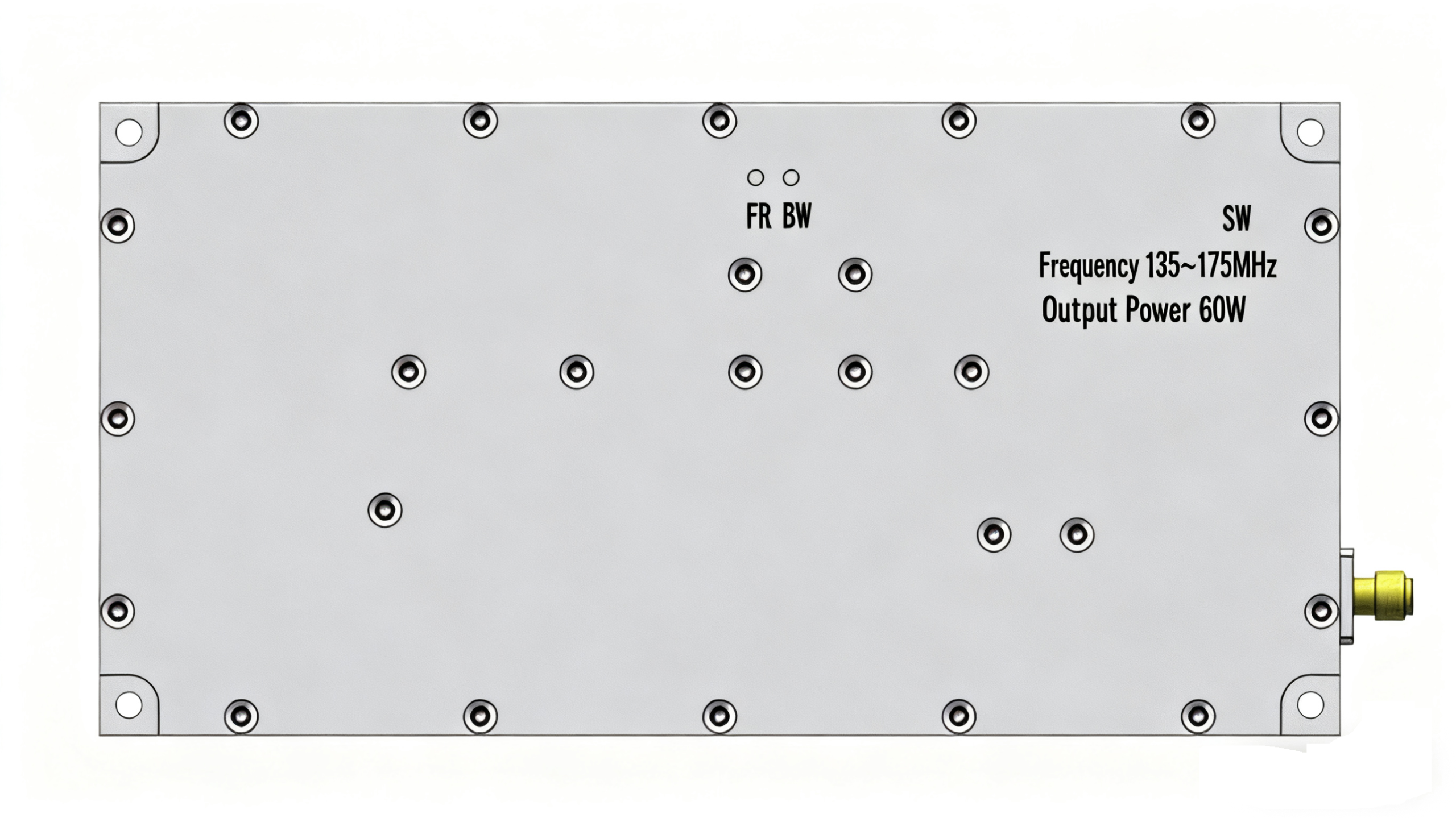

Product Appearance Image (Dimensions: 138×50.5×17mm)
* Product appearance schematic, actual product may vary
High-Frequency Precision Jamming
Specifically optimized for the 135~175MHz VHF band, providing precise and efficient signal jamming capabilities for various professional applications.
High-Efficiency Design
Operating efficiency ≥40%, maximum operating current 12A (DC12-14V), achieving excellent energy consumption control and heat dissipation in a compact structure.
High Power Output
Provides 60W effective jamming power, output VSWR ≤2.0, ensuring wide coverage and stable jamming effect within the VHF band.
Detailed Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SZMP1218MP60F1 |
| Frequency Range | 135 ~ 175MHz |
| Output Power | 60W |
| Output VSWR | ≤ 2.0 |
| Operating Voltage | DC 12V ~ 14V |
| Maximum Operating Current | 12A (@13.8V) |
| Operating Efficiency | ≥ 40% |
| Switch Control | +5V or Open: ON / Ground: OFF |
| RF Output Connector | SMA Female |
| Jamming Source Type | Built-in High-Speed Sweep Source |
| Dimensions | 138.0 × 50.5 × 17.0 mm |
| Weight | 0.22 kg |
Core Features
High-Frequency Precision Jamming
Specifically optimized for the 135~175MHz VHF band for precise signal jamming
High Power Output
60W high power output ensures wide coverage and stable jamming effect
Efficient Heat Dissipation
Advanced thermal design ensures stability during prolonged high-load operation
Intelligent Control Interface
Supports TTL level (+5V) and ground control modes for easy system integration
Built-in Sweep Source
Integrated high-speed frequency scanning for effective jamming across the band
Compact & Lightweight
Ultra-small size 138×50.5×17mm, weight only 0.22kg, easy to integrate
Application Areas
Professional Communication Shielding
Security Protection
Drone Signal Suppression
Military Communication Countermeasures
Exam Cheating Prevention
Secure Facility Management
Emergency Communication
Radio Monitoring & Control
Technical Highlights Summary
The SZMP1218MP60F1 module provides 60W high power output in the 135~175MHz band, with ≥40% high operating efficiency and excellent thermal performance. Through the built-in high-speed sweep source, it achieves efficient jamming. The ultra-compact design (138×50.5×17mm) and light weight (0.22kg) make it an ideal choice for professional communication jamming applications. Supports +5V TTL level or open/ground control for easy system integration and remote management.
