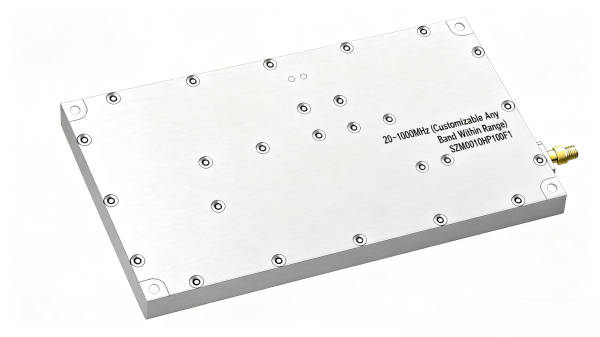

20~1000MHz 100W Professional Drone Jammer Module
Broadband High-Power Anti-Drone Solution with Customizable Frequency Range
The SZM0010HP100F1 is a powerful broadband drone jammer module offering customizable jamming coverage across the 20~1000MHz spectrum. This advanced anti-drone module delivers 100W output power to effectively disrupt various drone communication systems, including legacy and modern UAV control signals. With its customizable frequency range capability, this UAV jammer module can be precisely tailored to target specific drone threats in any operational environment. Ideal for integration into Backpack Drone Jammer systems, Portable Anti-Drone Systems, and Tactical UAV Jammer Backpacks, this drone signal jammer module for sale comes with comprehensive instructions on how to use a drone jammer module effectively. The robust design makes it suitable for both fixed installations and Wearable Drone Defender applications requiring high-power countermeasures.
Model: SZM0010HP100F1
Detailed Technical Specifications
| Parameter |
Specification |
| Product Model |
SZM0010HP100F1 |
| Operating Frequency Range |
20~1000MHz (customizable sub-band within this range) |
| Rated Output Power |
100W |
| Output VSWR |
≤ 2.0 |
| Operating Voltage Range |
DC 24V ~ 29V |
| Maximum Operating Current |
12.0A |
| Operating Efficiency |
≥ 40% |
| Switch Control Method |
+5V or Floating: ON / Ground: OFF |
| RF Output Interface |
SMA Female |
| Jamming Signal Type |
Built-in High-Speed Sweeping Source |
| Dimensions |
158.5 × 93.5 × 24.0 mm |
| Weight |
0.55 kg |
20~1000MHz 100W Professional Drone Jammer Module
Core Features
Broadband Customizable Jamming
This drone jammer module offers unprecedented flexibility with customizable frequency coverage between 20~1000MHz, allowing precise targeting of various drone communication systems across multiple bands.
High-Power Operation
With 100W output capability, this anti-drone module delivers exceptional jamming power for countering UAV threats at extended ranges, making it ideal for Tactical UAV Jammer Backpack systems.
High-Efficiency Design
≥40% operating efficiency with optimized power management, ensuring extended operation in Portable Anti-Drone Systems and Wearable Drone Defender applications.
Advanced Thermal Management
Robust heat dissipation system engineered for high-power operation, maintaining stability during prolonged drone jamming missions.
Intelligent Control Interface
TTL level (+5V) and Ground control modes enable flexible integration into comprehensive anti-drone systems and remote activation capabilities.
Integrated Broadband Sweeping
Built-in high-speed scanning rapidly covers custom frequency ranges for comprehensive drone signal disruption, effectively countering diverse UAV communication protocols.
Application Areas
High-Power Backpack Drone Jammer Systems
Portable Anti-Drone Stations
Tactical UAV Jammer Backpacks
Vehicle-Mounted Counter-Drone Systems
Fixed Site Protection
Military Base Security
Critical Infrastructure Protection
Technical Highlights Summary
The SZM0010HP100F1 drone jammer module delivers 100W stable output power across a customizable 20~1000MHz frequency range, featuring ≥40% operating efficiency and advanced thermal management. This versatile UAV jammer module’s integrated high-speed sweeping source ensures comprehensive coverage of drone control frequencies, while the robust design (158.5×93.5×24mm, 0.55kg) enables deployment in high-power Backpack Drone Jammer systems, Portable Anti-Drone Stations, and Tactical UAV Jammer Backpacks. As a drone jammer module for sale, it supports flexible +5V TTL or Floating/Ground control for seamless integration. Our comprehensive documentation provides detailed instructions on how to use a drone jammer module effectively in various security scenarios, including Wearable Drone Defender configurations.
