758~788MHz 100W High-Power Drone Jammer Module
Ultra-High Power Anti-Drone Solution with Advanced VSWR Protection
The SZMP7579MP100F1 is a high-performance drone jammer module specifically engineered for the 758~788MHz frequency band, delivering exceptional 100W output power for maximum drone disruption range. This advanced anti-drone module incorporates cutting-edge RF technology with a built-in high-speed sweeping source and integrated absorptive VSWR protection to safeguard against antenna mismatches. Designed for integration into professional Backpack Drone Jammer systems, Portable Anti-Drone Stations, and Tactical UAV Jammer Backpacks, this drone signal jammer module for sale offers unparalleled performance in counter-UAV operations. Comprehensive documentation provides detailed instructions on how to use a drone jammer module effectively, making it suitable for both fixed installations and Wearable Drone Defender applications requiring high-power countermeasures.
Model: SZMP7579MP100F1
Detailed Technical Specifications
极速
| Parameter |
Specification |
| Product Model |
SZMP7579MP100F1 |
| Operating Frequency Range |
758~788MHz |
| Rated Output Power |
100W |
| Output VSWR |
≤ 2.0 |
| Operating Voltage Range |
DC 24V ~ 29V |
| Maximum Operating Current |
12.0A |
| Operating Efficiency |
≥ 40% |
| Switch Control Method |
极速+5V or Floating: ON / Ground: OFF |
| RF Output Interface |
SMA Female |
| Jamming Signal Type |
Built-in High-Speed Sweeping Source |
| VSWR Protection |
Built-in Absorptive VSWR Protection Device |
| Dimensions |
168.5 × 84.5 × 23.0 mm |
| Weight |
0.55 kg |

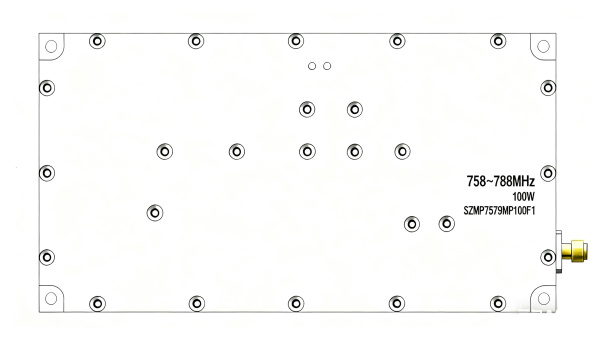

758~788MHz 100W High-Power Drone Jammer Module SZMP7579MP100F1
Core Features
High-Power Precision Jamming
This drone jammer module delivers 100W output power specifically optimized for the 758~788MHz band, providing exceptional range and penetration against modern drone communication systems.
Advanced VSWR Protection
Integrated absorptive VSWR protection safeguards this anti-drone module against antenna mismatches, ensuring reliability in demanding field conditions for Tactical UAV Jammer Backpack applications.
High-Efficiency Design
≥40% operating efficiency with optimized power management, ensuring extended operation in Portable Anti-Drone Systems and high-power Wearable Drone Defender configurations.
Enhanced Thermal Management
Advanced cooling system engineered for 100W operation, maintaining stability during prolonged drone jamming missions in Backpack Drone Jammer systems.
Intelligent Control Interface
TTL level (+5V) and Ground control modes enable flexible integration into comprehensive anti-drone systems and remote activation capabilities.
Integrated High-Speed Sweeping
Built-in rapid frequency scanning covers the 758~788MHz band for comprehensive drone signal disruption, effectively countering advanced UAV communication protocols.
Application Areas
High-Power Backpack Drone Jammer Systems
Portable Anti-Drone Stations
Tactical UAV Jammer Backpacks
Vehicle-Mounted Counter-Drone Systems
Fixed Site Protection
Military Base Security
Critical Infrastructure Protection
Technical Highlights Summary
The SZMP7579MP100F1 drone jammer module delivers 100W stable output power across the 758~788MHz frequency band, featuring ≥40% operating efficiency and advanced thermal management. This high-power UAV jammer module’s integrated high-speed sweeping source and built-in absorptive VSWR protection ensure comprehensive coverage and reliability. The robust design (168.5×84.5×23mm, 0.55kg) enables deployment in high-power Backpack Drone Jammer systems, Portable Anti-Drone Stations, and Tactical UAV Jammer Backpacks. As a drone jammer module for sale, it supports flexible +5V TTL or Floating/Ground control for seamless integration. Our comprehensive documentation provides detailed instructions on how to use a drone jammer module effectively in various security scenarios, including Wearable Drone Defender configurations requiring maximum jamming power.
