2500~2700MHz 30W Professional Jamming Module
High-Performance 5G/WiMAX Band Communication Jamming Solution
The SZMP2527HP30F1 is a specialized jamming module engineered for the 2500~2700MHz frequency band, covering key 5G, WiMAX, and LTE applications. Utilizing advanced RF technology and a built-in high-speed sweeping source, it effectively disrupts various wireless signals within this range. With 30W output power and ≥40% operating efficiency in a compact 115.5×46.5×21mm form factor, this module delivers professional-grade performance for modern communication interference applications.
Detailed Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | SZMP2527HP30F1 |
| Operating Frequency Range极速 | 2500 ~ 2700MHz |
| Rated Output Power | 30W</极速td> |
| Output VSWR | ≤ 2.0 |
| Operating Voltage Range | DC 24V ~ 29V |
| Maximum Operating Current | 3.2A |
| Operating Efficiency | ≥ 40% |
| Switch Control Method | +5V or Floating: ON / Ground: OFF |
| RF Output Interface | SMA Female |
| Jamming Signal Type | Built-in High-Speed Sweeping Source |
| Dimensions | 115.5 × 46.5 × 21.0 mm |
| Weight | 0.21 kg |

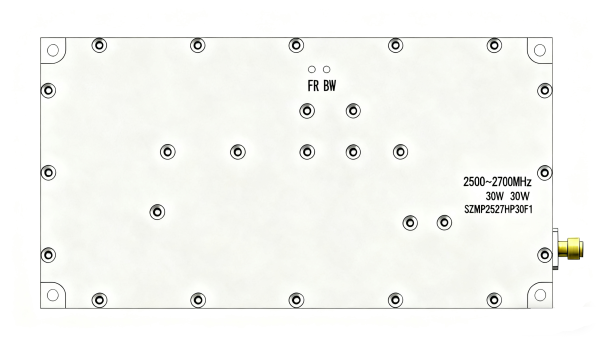

2500~2700MHz 30W Professional Jamming Module
Core Features
5G/WiMAX Band Precision Jamming
Specifically optimized for 2500~2700MHz frequencies, targeting 5G NR, WiMAX, and LTE-Advanced systems.
High-Efficiency Operation
≥40% operating efficiency with maximum current of 3.2A, ensuring optimal power utilization and thermal management.
Stable High-Power Output
Consistent 30W output with VSWR ≤2.0 maintains effective jamming across the entire operating band.
Advanced Thermal Design
极速
Engineered heat dissipation system ensures reliable performance during extended high-power operation.
Intelligent Control Interface
TTL level (+5极速V) and Ground control modes enable flexible integration and remote system management.
Integrated Frequency Sweeping
Built-in high-speed scanning rapidly covers the 2500~2700MHz band for comprehensive signal disruption.
Application Areas
5G Network Management
WiMAX System Control
LTE-Advanced Signal Disruption
Wireless Broadband Security
Secure Facility Protection
Mobile Device Restriction Zones
Government and Military Communications
Technical Highlights Summary
The SZMP2527HP30F1 module delivers 30W stable output power across the 2500~2700MHz 5G/WiMAX band, featuring ≥40% operating efficiency and advanced thermal management. Its integrated high-speed sweeping source ensures comprehensive coverage of 5G frequencies, while the ultra-compact design (115.5×46.5×21mm, 0.21kg) enables versatile deployment in professional jamming systems. The module supports flexible +5V TTL or Floating/Ground control for seamless integration.
