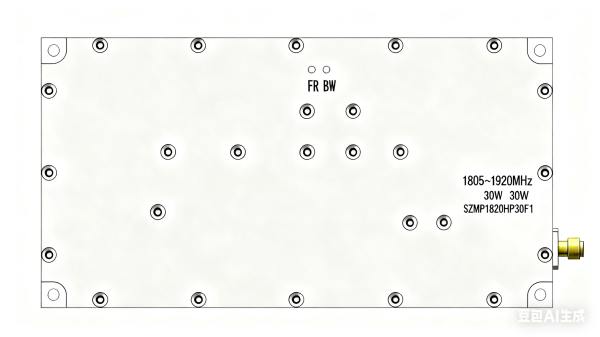

1805~1920MHz 30W Professional Jamming Module
High-Performance Mobile Band Communication Jamming Solution
The SZMP1820HP30F1 is a specialized jamming module engineered for the 1805~1920MHz mobile communication band. Featuring advanced RF technology and a built-in high-speed sweeping source, it effectively disrupts various wireless signals within this frequency range. With 30W output power and ≥40% operating efficiency in a compact 115.5×46.5×21mm form factor, this module delivers exceptional performance for professional communication interference applications.
Model: SZMP1820HP30F1
Detailed Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | SZMP1820HP30F1 |
| Operating Frequency Range | 1805 ~ 1920MHz |
| Rated Output Power | 30W |
| Output VSWR | ≤ 2.0 |
| Operating Voltage Range | DC 24V ~ 29V |
| Maximum Operating Current | 3.2A |
| Operating Efficiency | ≥ 40% |
| Switch Control Method | +5V or Floating: ON / Ground: OFF |
| RF Output Interface | SMA Female |
| Jamming Signal Type | Built-in High-Speed Sweeping Source |
| Dimensions | 115.5 × 46.5 × 21.0 mm |
| Weight | 0.21 kg |
Core Features
Mobile Band Precision Jamming
Optimized for 1805~1920MHz mobile communication frequencies, providing targeted disruption of cellular and data signals.
High-Efficiency Operation
≥40% operating efficiency with maximum current of 3.2A, ensuring optimal power utilization in compact systems.
Stable High-Power Output
Consistent 30W output with VSWR ≤2.0 maintains effective jamming across the entire operating band.
Advanced Thermal Design
Engineered heat dissipation ensures reliable performance during extended operation at maximum power.
Intelligent Control Interface
TTL level (+5V) and Ground control modes enable flexible integration and remote management.
Integrated Frequency Sweeping
Built-in high-speed scanning rapidly covers the 1805~1920MHz band for comprehensive signal disruption.
Application Areas
Cellular Network Management
Mobile Communication Security
LTE/4G Signal Control
Wireless Data Link Disruption
Secure Facility Protection
Mobile Device Restriction Zones
Telecommunication Infrastructure Security
Technical Highlights Summary
The SZMP1820HP30F1 module delivers 30W stable output power across the 1805~1920MHz mobile communication band, featuring ≥40% operating efficiency and advanced thermal management. Its integrated high-speed sweeping source ensures comprehensive coverage of cellular frequencies, while the ultra-compact design (115.5×46.5×21mm, 0.21kg) enables versatile deployment in professional jamming systems. The module supports flexible +5V TTL or Floating/Ground control for seamless integration.
