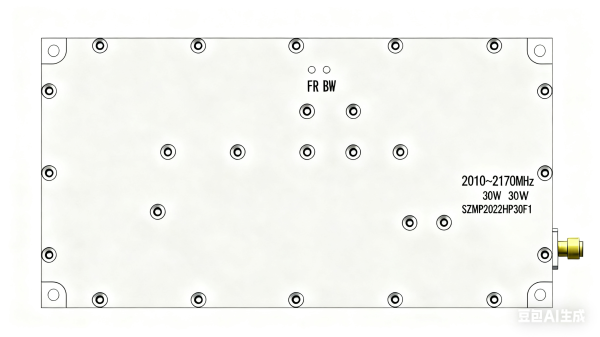

2010~2170MHz 30W Professional Jamming Module
High-Performance 3G/4G Band Communication Jamming Solution
The SZMP2022HP30F1 is a specialized jamming module designed for the 2010~2170MHz frequency band, covering key 3G/4G mobile communication frequencies. Utilizing advanced RF technology and a built-in high-speed sweeping source, it effectively disrupts various wireless signals within this range. With 30W output power and ≥40% operating efficiency in a compact 115.5×46.5×21mm form factor, this module delivers professional-grade performance for modern communication interference applications.
Model: SZMP2022HP30F1
Detailed Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | SZMP2022HP30F1 |
| Operating Frequency Range | 2010 ~ 2170MHz |
| Rated Output Power | 30W |
| Output VSWR | ≤ 2.0 |
| Operating Voltage Range | DC 24V ~ 29V |
| Maximum Operating Current | 3.2A |
| Operating Efficiency | ≥ 40% |
| Switch Control Method | +5V or Floating: ON / Ground: OFF |
| RF Output Interface | SMA Female |
| Jamming Signal Type | Built-in High-Speed Sweeping Source |
| Dimensions | 115.5 × 46.5 × 21.0 mm |
| Weight | 0.21 kg |
2010~2170MHz 30W Professional Jamming Module
Core Features
3G/4G Band Precision Jamming
Specifically optimized for 2010~2170MHz frequencies, targeting modern mobile communication systems including UMTS and LTE.
High-Efficiency Operation
≥40% operating efficiency with maximum current of 3.2A, ensuring optimal power utilization and thermal management.
Stable High-Power Output
Consistent 30W output with VSWR ≤2.0 maintains effective jamming across the entire operating band.
Advanced Thermal Design
Engineered heat dissipation system ensures reliable performance during extended high-power operation.
Intelligent Control Interface
TTL level (+5V) and Ground control modes enable flexible integration and remote system management.
Integrated Frequency Sweeping
Built-in high-speed scanning rapidly covers the 2010~2170MHz band for comprehensive signal disruption.
Application Areas
3G/4G Mobile Network Management
UMTS/LTE Signal Control
Secure Facility Protection
Wireless Data Link Disruption
Mobile Device Restriction Zones
Telecommunication Infrastructure Security
Government and Military Communications
Technical Highlights Summary
The SZMP2022HP30F1 module delivers 30W stable output power across the 2010~2170MHz mobile communication band, featuring ≥40% operating efficiency and advanced thermal management. Its integrated high-speed sweeping source ensures comprehensive coverage of 3G/4G frequencies, while the ultra-compact design (115.5×46.5×21mm, 0.21kg) enables versatile deployment in professional jamming systems. The module supports flexible +5V TTL or Floating/Ground control for seamless integration.
